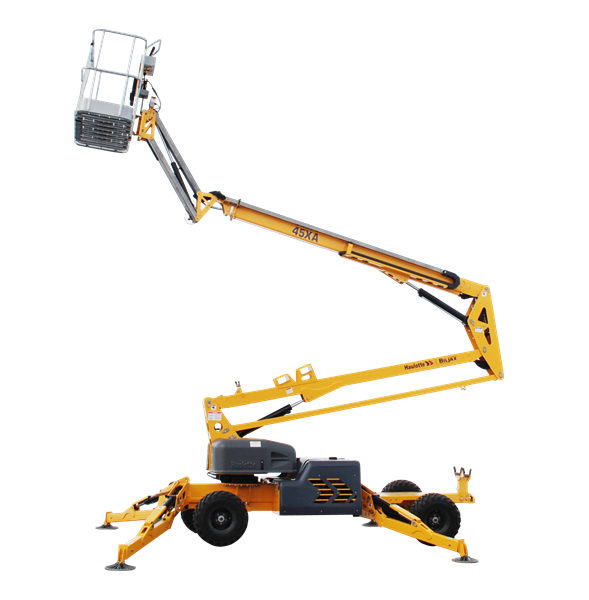

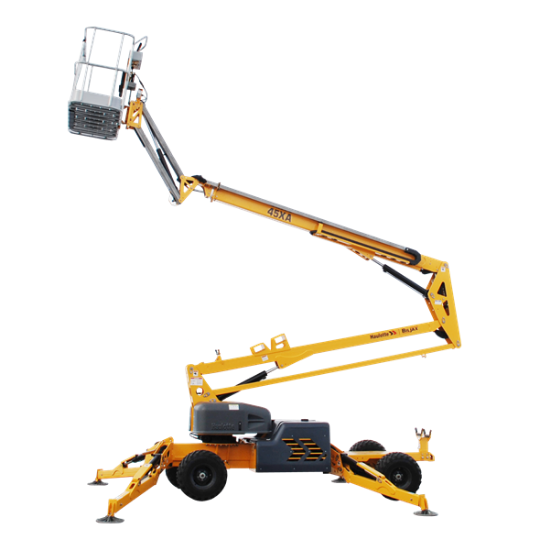

Lift, 45' Articulated Man

Only available to rent at the Milford location.
*
*
Daily :$330.00
Weekly :$1,320.00
increase decrease
    Specifications

    Platform height: 45'

    Working height: 51'

    Horizontal outreach from center line: 27'

    Horizontal outreach from edge of foot pad: 21'

    Up and over height: 20' 9'

    Basket capacity: 500 lbs

    Length stowed: 18' 2"

    Width stowed: 5' 6"

    Height stowed: 6' 7"

    Wheelbase: 8' 9"

    Ground Clearance: 6"

    Platform size: 5' x 2' 6"

    Footprint with outriggers down: 12' 4" x 11' 4"

    Turntable rotation: 350°

    Weight: 5200 lbs

    Dual power: gas engine and battery

    Leveling capability: 12.5°



    Transported on a skid steer therefore a 3/4 ton truck or larger is required to pick unit up.



    Cannot be rented when wind speeds are at or above 28 mph
